> Markalar>Amplifikatörler>HX Serisi>Clarion ADP-6000
Clarion ADP-6000 Daha Büyük Görüntüle
Önceki Sonraki

Clarion ADP-6000

Yeni


  • Ultra low noise and high input sensitivity (up to 5 Vrms)

  • User-friendly built-in 3-way crossover filter to cover any speakers configurations

  • 2 ohms stable to drive up to 12 speakers (4 ohms) for more than 700W RMS true power (5 and 6CH configuration)

  • 1 ohm stable to drive up to 16 speakers (4 ohms) for more than 800W RMS true power (4+2CH configuration only)

Daha Fazla Detaylar

Bu ürün artık stokta bulunmamaktadır

18,644.07 TL

İstek listesine ekle

Daha Fazla Bilgi

Clarion's HX-Series amplifiers supply the power to drive a wide variety of in-car entertainment　systems, whether it is ultimate quality, extreme looks, or system expansion and flexibility.



For decades Clarion has offered advanced power Amplifiers to accommodate a variety of In Car　Entertainment (ICE) systems.



Our latest lineup employs high quality materials and leading-edge design for the sole purpose of　providing the muscle to drive your music.

Premium flexibility

ADP6000

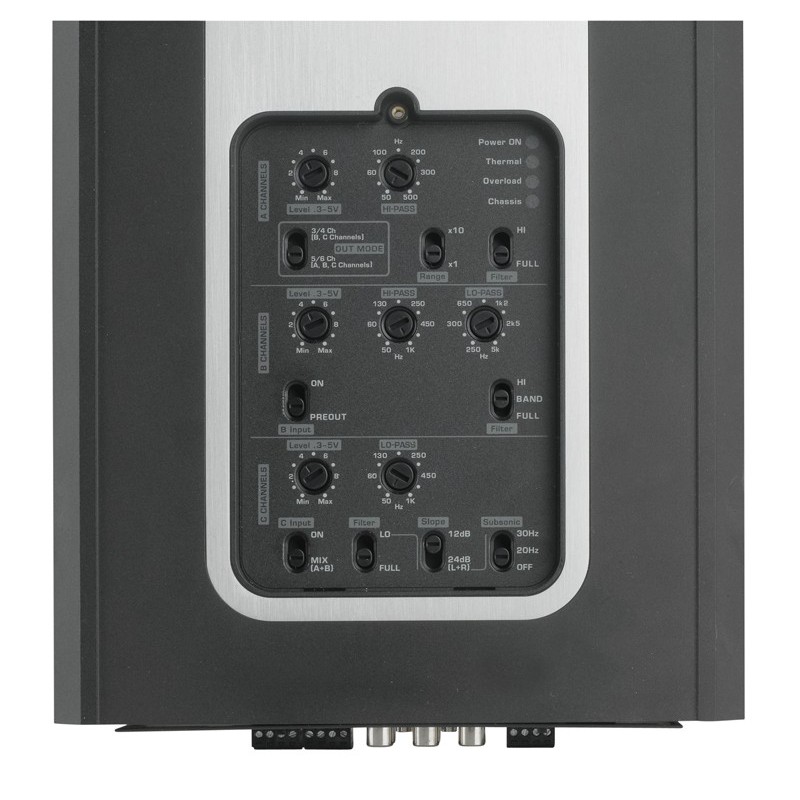

All the controls for the ADP6000 are located on the top panel of the amplifier to make system tuning easy. The ADP6000 includes status LEDs for power and protection circuitry. The B channels include bandpass crossovers while the C channel includes an adjustable subsonic filter and slope adjustment. Complete system tuning is right at your fingertips. Easy subwoofer system configuration is possible with the embedded high-pass and low-pass filters.
The result is high quality sound you can enjoy in a variety of systems.

State of the art components

ADP6000

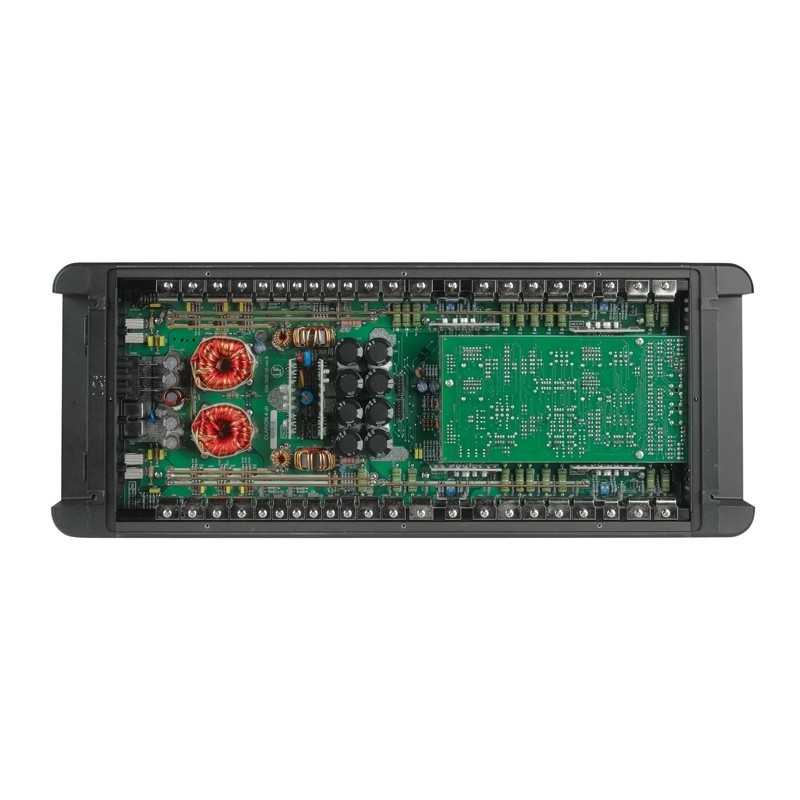

Designed using a sonically transparent Class A input stage and high-damping ultra-linear Class AB output stage, the ADP6000 is one of the most dynamic and controlled amplifiers ever created by Clarion. Copper buss bars, dual power supplies and a massive energy storage bank ensures that power is available and distributed evenly to each channel for maximum performance.
ADP6000
ADP6000
Power supply
 Voltage  11 ～ 15 VDC
 Minimum idling current  1.9 A
 Idling current when off  0.02 mA
 Consumption @ 14.4 VDC (MAX musical power)  65 A
 Remote IN Voltage  7 ～ 15 VDC (1.3 mA)
 Remote OUT Voltage  12 VDC (50 mA)
 Internal fuse  3 x 30 A



Amplifier stage
 Total Harmonic Distortion (1 kHz @ 4 )  0.07%
 Frequency Response (-3 dB)  4 Hz ～ 100 kHz
 S/N ratio (A-weighted @ 1 VRMS)  >105 dB
 Damping factor (1 kHz @ 4 )  >120
 Input sensitivity (PRE IN)  0.3 ～ 5 V
 Input sensitivity (Speaker IN)  1.4 ～ 24 V
 Input impedance (PRE IN)  15 kΩ
 Input impedance (Speaker IN)  5 kΩ
 Load impedance (MIN)
 • 6 Channels 4 x 2Ω + 2 x 1Ω  4 x 2Ω + 2 x 1Ω
 • 5 Channels 5 x 2Ω  5 x 2Ω
 • 4 Channels 2 x 4Ω + 2 x 1Ω  2 x 4Ω + 2 x 1Ω
 • 3 Channels 2 x 4Ω + 1 x 2Ω  2 x 4Ω + 1 x 2Ω
 Nominal output power (RMS) PN @ 12 VDC
 0.3% THD		  65 W x 4 + 70 W x 2
 6 Ch Output power (RMS) @ 14.4 VDC 1% THD
 • 6 Channels 6 Ch x 4Ω  70 W x 4 + 75 W x 2
 • 6 Channels 6 Ch x 2Ω  115 W x 4 + 130 W x 2
 • 6 Channels 4 Ch x 2Ω + 2 Ch x 1Ω  100 W x 4 + 200 W x 2
 • 5 Channels 5 Ch x 2Ω  100 W x 4 + 350 W x 1
 4 Ch Output power (RMS) @ 14.4 VDC 1% THD
 • 4 Channels 2 Ch x 4Ω + 2 Ch x 4Ω  -
 • 4 Channels 2 Ch x 2Ω + 2 Ch x 2Ω  -
 • 3 Channels 2 Ch x 4Ω + 1 Ch x 4Ω  -
 • 3 Channels 2 Ch x 4Ω + 1 Ch x 2Ω  -
 • 3 Channels 2 Ch x 2Ω + 1 Ch x 4Ω  -



Inputs/Outputs/Filters
 OUT MODE  5/6 Ch ～ 3/4 Ch
 IN A Ch  PRE/Speaker
 IN B Ch  PRE/Speaker
 IN C Ch  PRE/Speaker
 OUT (Full)  PRE
 A Ch Filter  BYPASS/HI-PASS [50 Hz ～ 5 kHz] (12 dB/Oct.)
 B Ch Filter  BYPASS/HI-PASS [50 Hz ～ 1 kHz]/ LO-PASS [250 Hz ～ 5 kHz]/BAND-PASS (12 dB/Oct.)
 C Ch Filter  BYPASS/LO-PASS [50 Hz ～ 1 kHz] (12/24(Mono)dB/Oct.)
 Subsonic  OFF/20/30 Hz (24 dB/Oct.)
 Active with B Ch. LO-PASS L+R
 Sub remote volume control  -5 ～ +5 dB Active with B Ch. LO-PASS 24 dB/Oct. L+R



Size
 D x L x H  208 x 540 x 56 mm
 Weight (Kg)  6.86
