> Kenwood>Amplifikatörler>eXcelon serisi>Kenwood X302-4
İndirimli Fiyat! Kenwood X302-4 Daha Büyük Görüntüle
Önceki Sonraki

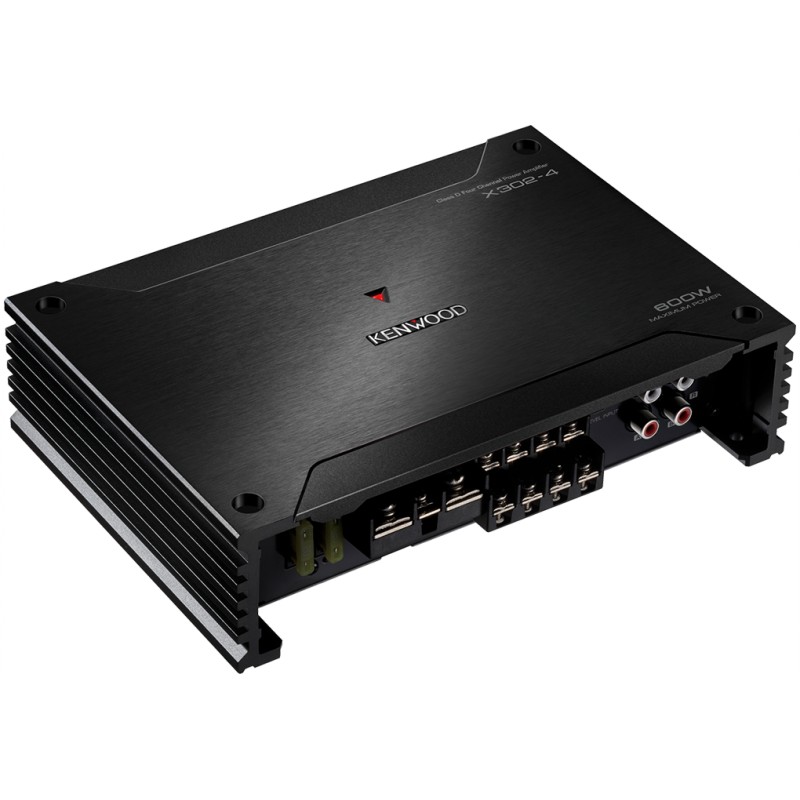

Kenwood X302-4

Yeni

X302-4

X-Series, Class D 4-Channel Power Amplifier

Class D Amplifier

Yes

Full Range Digital Amplifier

Yes

Load Capability

2Ω Stable

Rated power output (4Ω)

50W x 4 (4Ω)

Rated power output

75W x 4 (2Ω)

Bridged power output (4Ω)

150W x 2

Daha Fazla Detaylar

Bu ürün artık stokta bulunmamaktadır

9,661.02 TL

-5%

10,169.49 TL

İstek listesine ekle

Daha Fazla Bilgi

Key Features

4-channel digital power amplifier
Variable high & low pass filter
Speaker Level Input
Signal sensing Turn-on
2 ohms load capability
CEA-2006 compliant
Hi-Res Audio compliant
One side terminals for smart installation
Screw-type terminals

Amplifier Features

Class D Amplifier Yes
Full Range Digital Amplifier Yes
Load Capability 2Ω Stable
Rated power output (4Ω) 50W x 4 (4Ω)
Rated power output 75W x 4 (2Ω)
Bridged power output (4Ω) 150W x 2
High-Resolution Audio certified Yes
CEA-2006 Compliant Yes
Low-pass Filter Yes
High-pass Fliter Yes
Switched Mode Power supply Yes, with Power MOS-FET
Signal Sensing Turn-on Yes
Speaker level Input Yes
Single Side Terminals Yes
Die-Cast Aluminium Heat Sink Yes

Amplifier-Specifications

Rated power output (4Ω, 14,4V) 50W x 4 (20Hz ~ 20000Hz, 1%THD)
Rated power output (2Ω, 14,4V) 75W x 4 (1000Hz, 1%THD)
Rated power output (CEA-2006) 50Watts RMS x 4 at 4 ohms and 1% THD
Low-pass Filter 50~200Hz (-24dB/oct)
High-pass Fliter 50~200Hz (12dB/oct)
Bass Boost Circuit 40Hz, 18dB (B-Channel)
RCA Input Sensitivity 0.2 ~ 5V
Input Impedance 10kΩ
Signal to Noise Ratio 100dB
Signal to noise ratio (CEA-2006) 80dBa (Reference: 1 Watt into 4 Ohms)
Frequency response (+0dB, -1dB) 20Hz ~ 50000Hz
Freq. resp. (+0dB, -3dB) (SUB) 20Hz ~ 200Hz
Operating voltage 14.4V (11V ～ 16V allowable)
Maximum current consumption 20A
Installation Size (WxHxD) 213 x 53 x 149 (mm)
Weight 1.4kg
