Hertz DBA 201
Alıcı :
* Zorunlu alan
Veya İptal

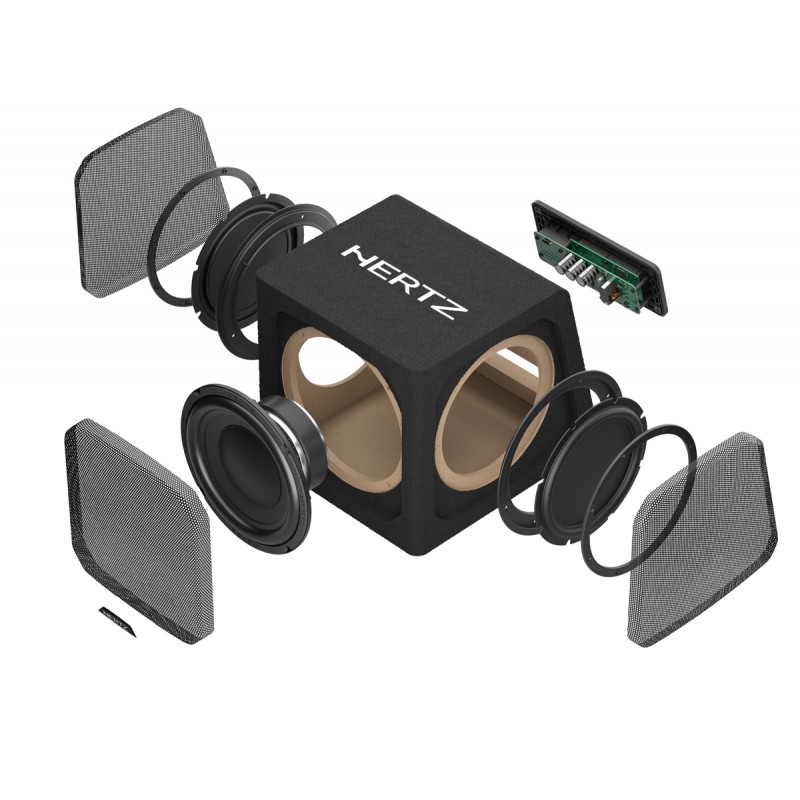

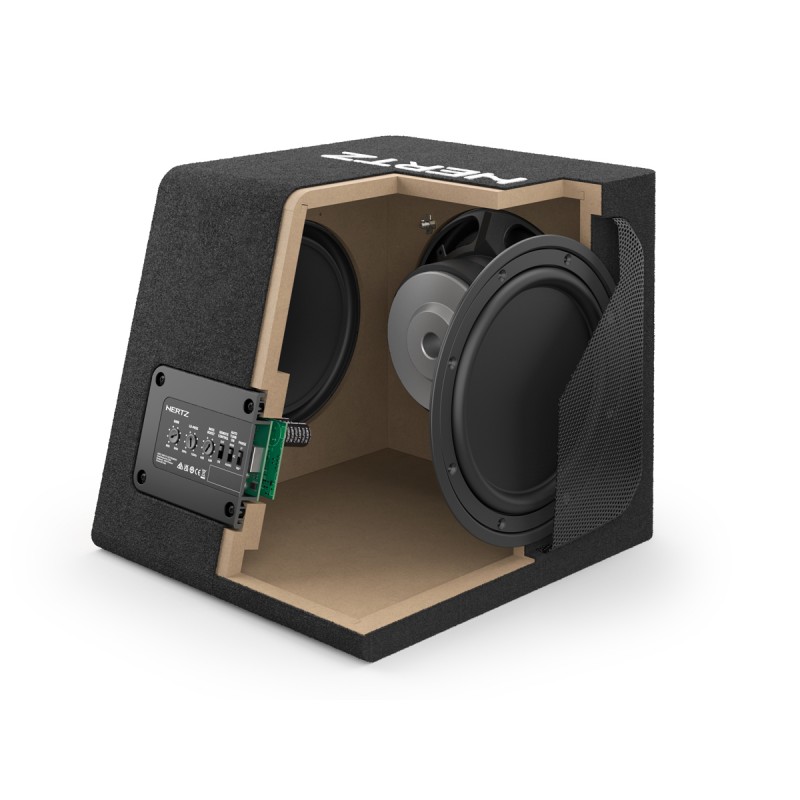

The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.
Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.
Auto turn-on and standby mode
The built-in audio sense circuit allows the DBA 201 to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.
Operating voltage VDC (Fuse) | 6.5 ÷ 18 (15A) |
Start - Stop voltage VDC | 6 |
Idling current A (Power OFF) | 260 m (1 m) |
Consumption @ 14,4 VDC Max musical power A | 8.5 |
Remote IN Turn on VDC (Current) | 4 (1 mA) |
PRE input signal Turn ON VRMS | 10 mV |
SPK input DC Turn ON VDC | 2 |
Distortion - THD @ 100 Hz % | 0.15 |
Bandwidth Hz | 15 - 150 |
S/N ratio dBA | 100 |
Output power (RMS) @ 14,4 VDC, 1% THD W | 220 |
PRE input signal VRMS (impedance) | 0.2 ÷ 5 (10kΩ) |
SPK input signal VRMS (impedance) | 1.2 ÷ 30 (6Ω) |
LO-PASS Filter @ 24 dB Oct adjustable Hz | 50 ÷ 150 |
Subsonic Filter @ 24 dB Oct Fixed Hz | 15 |
Phase switch | 0 / 180° |
Bass Boost @45 Hz dB | 0 ÷ 6 |
Sub remote volume control dB | 0 ÷ -15 (HRC 01 included) |
