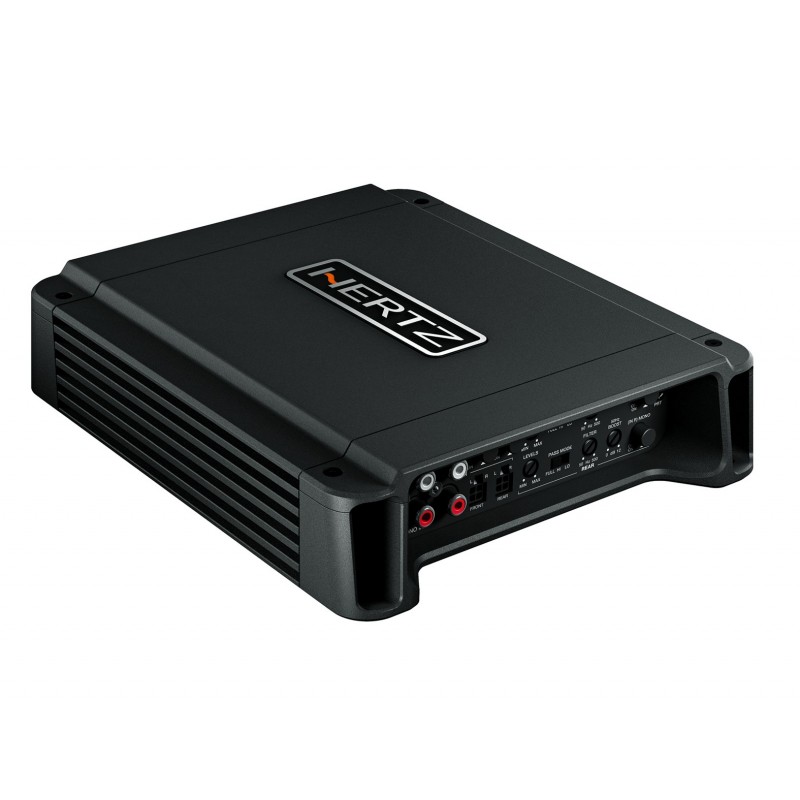

Hertz Compact Power HCP 4D

Yeni

HCP 4D

D-CLASS FOUR CHANNEL AMPLIFIER

HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono

Daha Fazla Detaylar

Bu ürün artık stokta bulunmamaktadır

20,076.05 TL

İstek listesine ekle

Daha Fazla Bilgi

Data table

Channel mode

4 - 3 - 2

Output Power (RMS)

@ 14.4 VDC

4 Ch: 85 W x 4 (4 Ω)
4 Ch: 145 W x 4 (2 Ω)
3 Ch: 85 W x 2 (4 Ω) + 290 W x 1 (4 Ω)
3 Ch: 145 W x 2 (2 Ω) + 290 W x 1 (4 Ω)
2 Ch: 290 W x 2 (4 Ω)

Filters

Bypass

Hi-Pass

Lo-Pass

Band-Pass

Yes

A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.

A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.

-

Distortion - THD

(100Hz @ 4Ω)

0.02%

S/N Ratio

(A weighted @ 1V)

100 dB

Damping factor

(100Hz @ 4Ω)

200

Size W x D x H

mm (in.)

215 x 190 x 50 (8.46 x 7.48 x 1.97)

Input / Output

Press review

Technologies

  • REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY

    The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.

  • COMPLETED FILTER SECTION

    Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.

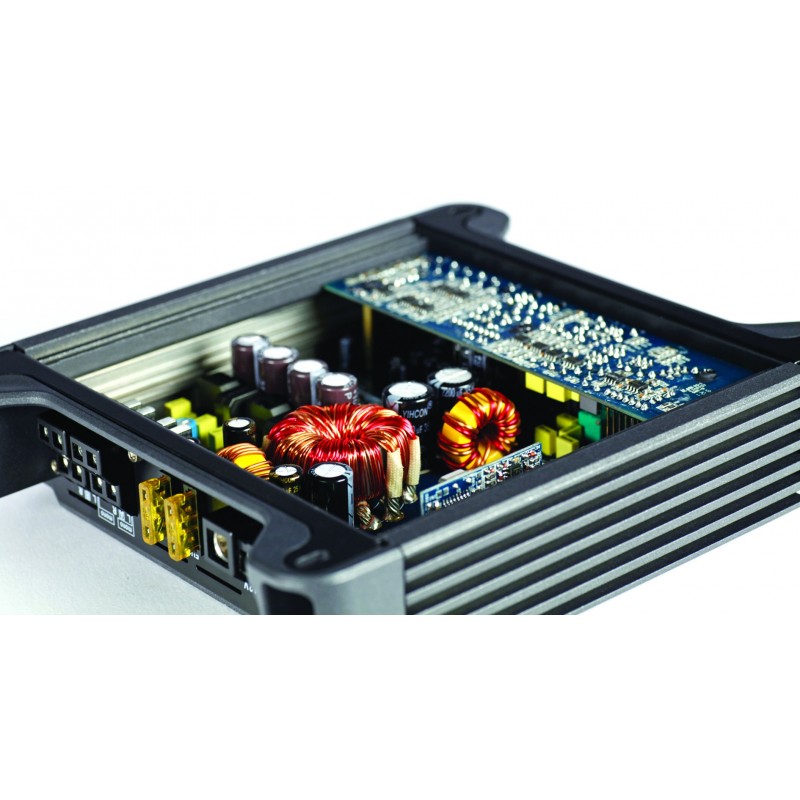

  • HCP ELECTRONICS

    Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105°C capacitors, selected to ensure high efficiency and current capability.

  • ART

    Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.
