Hertz Compact Power HCP 4

Durum Yeni

HCP 4

FOUR CHANNEL AMPLIFIER

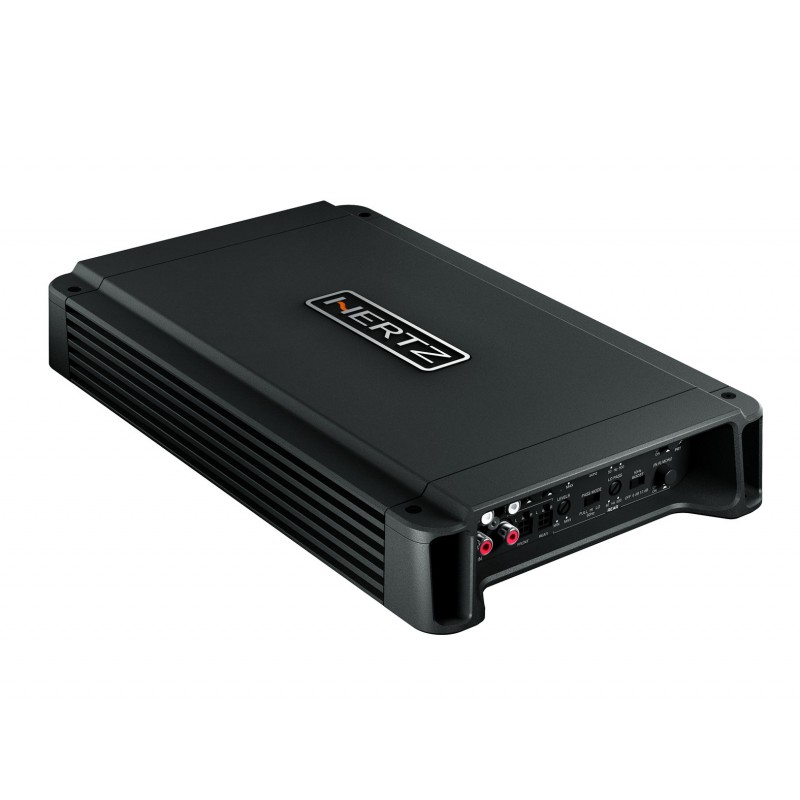

HCP 4 is a four channels car audio amplifier designed to reproduce any musical genres with four separate channels for multiple configurations. Pre-amplified (Pre-In) inputs and high-level (Speaker-In) inputs allow for connection with any head units.

Daha Fazla Detaylar

Arkadaşına Gönder

Arkadaşına Gönder

Hertz Compact Power HCP 4

HCP 4

FOUR CHANNEL AMPLIFIER

HCP 4 is a four channels car audio amplifier designed to reproduce any musical genres with four separate channels for multiple configurations. Pre-amplified (Pre-In) inputs and high-level (Speaker-In) inputs allow for connection with any head units.

Alıcı :

Arkadaşınızın Adı ^* :

Arkadaşınızın eposta adresleri ^* :

^* Zorunlu alan

Veya İptal
Yazdır

16,151.08 TL

Miktarı

İstek listesine ekle

Daha Fazla Bilgi

Data table

Channel mode	4 - 3 - 2
Output Power (RMS) @ 14.4 VDC	4 Ch: 65 W x 4 (4 Ω) 4 Ch: 95 W x 4 (2 Ω) 3 Ch: 65 W x 2 (4 Ω) + 190 W x 1 (4 Ω) 3 Ch: 95 W x 2 (2 Ω) + 190 W x 1 (4 Ω) 2 Ch: 190 W x 2 (4 Ω)
Filters Bypass Hi-Pass Lo-Pass Band-Pass	Yes A/B: 80 Hz @ 12 dB/Oct. A/B: 50 ÷ 500 Hz @ 12 dB/Oct. -
Distortion - THD (100Hz @ 4Ω)	0.01%
S/N Ratio (A weighted @ 1V)	103 dB
Damping factor (100Hz @ 4Ω)	120
Size W x D x H mm (in.)	315 x 190 x 50 (12.40 x 7.48 x 1.97)

Input / Output

Press review

Technologies

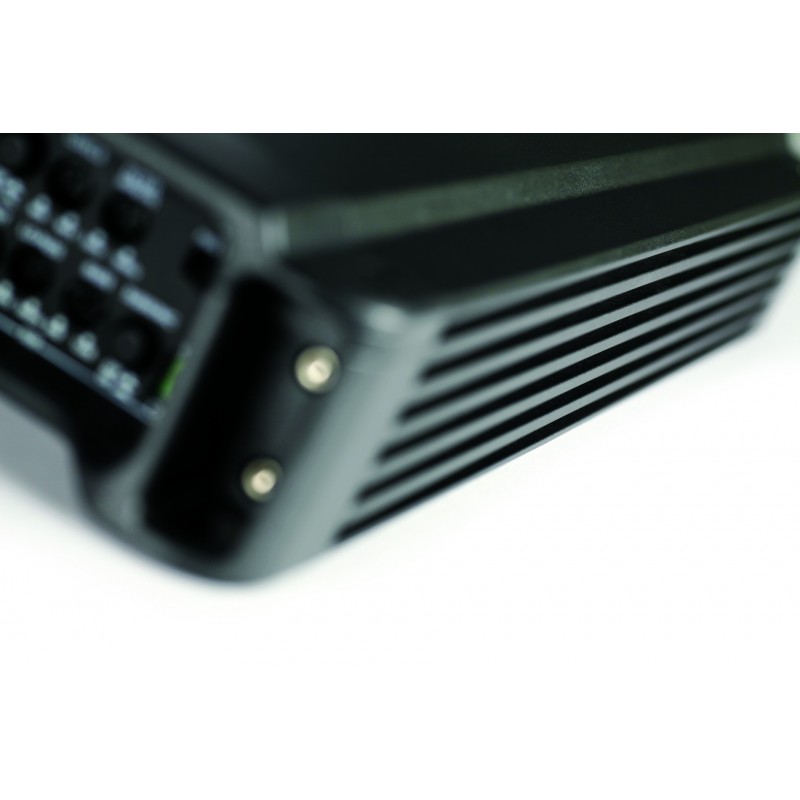

REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.
COMPLETED FILTER SECTION
Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.

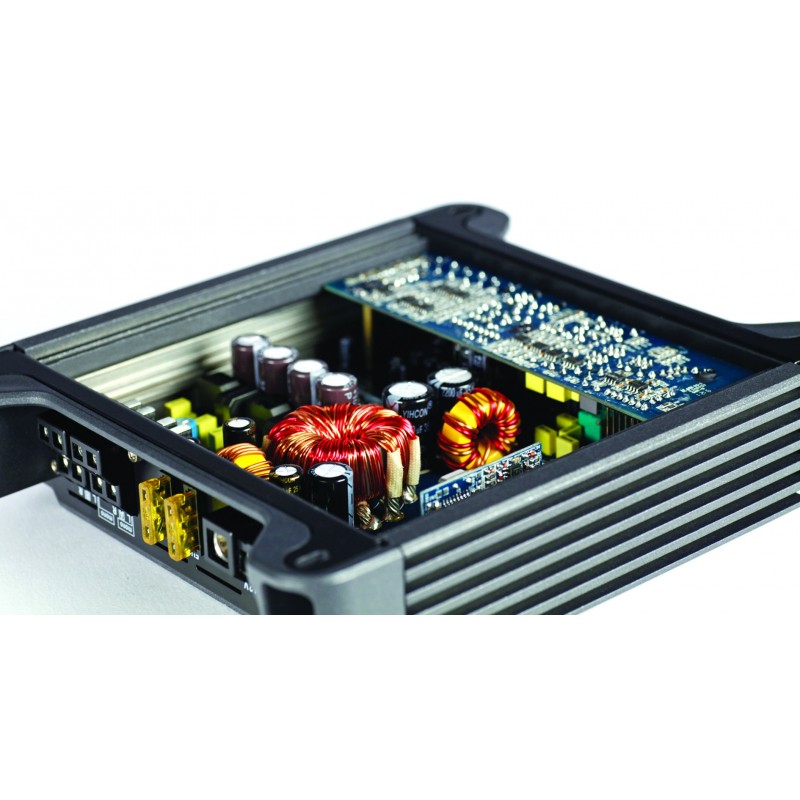

HCP ELECTRONICS
Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105°C capacitors, selected to ensure high efficiency and current capability.
ART
Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.
