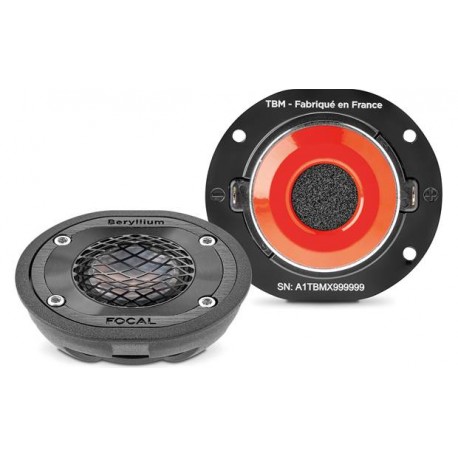

Focal Utopia TBM

Durum Yeni

The culmination of the very best of our latest innovations, our Beryllium tweeter combines for the first time ever our ‘M’-profile dome and our patented TMD® surround. With this new combination, our engineering teams have successfully extended the frequency response and obtained better dispersion.

Daha Fazla Detaylar

Uyarı: Stoktaki Son Ürün!

Arkadaşına Gönder

Arkadaşına Gönder

Focal Utopia TBM

The culmination of the very best of our latest innovations, our Beryllium tweeter combines for the first time ever our ‘M’-profile dome and our patented TMD® surround. With this new combination, our engineering teams have successfully extended the frequency response and obtained better dispersion.

Alıcı :

Arkadaşınızın Adı ^* :

Arkadaşınızın eposta adresleri ^* :

^* Zorunlu alan

Veya İptal
Yazdır

48,490.57 TL

-0%

Miktarı

İstek listesine ekle

Daha Fazla Bilgi

Features & specs

General
Speaker Size	1
Design	1-way
Tweeter Design	M-Profile Inverted Dome
Impedance (Ohms)	4
Tweeter Composition	Beryllium
Woofer Composition	---
Woofer Surround	Butyl Rubber

Specifications
Sensitivity (1W at 1 meter)	N/A
Sensitivity at 2.83 volts	95
Frequency Response	1500 - 50k Hz
Minimum RMS Wattage	---
Maximum RMS Wattage	20
Peak Power Handling (Watts)	200
Top-mount Depth (Inches)	0 13/16
Bottom-mount Depth (Inches)	N/A
Cutout Diameter or Length (inches)	0

Product Research

Features

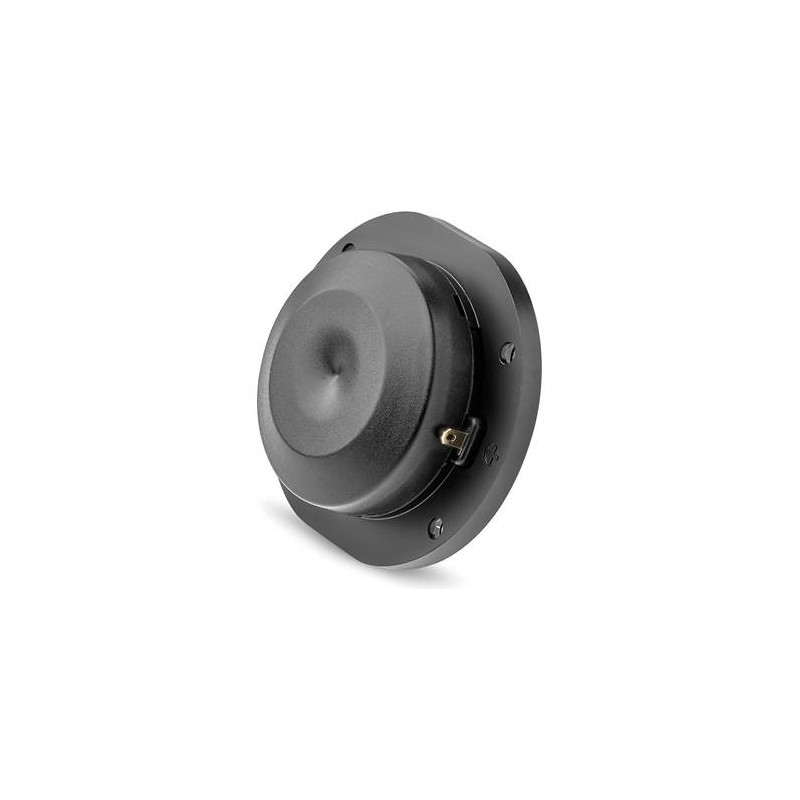

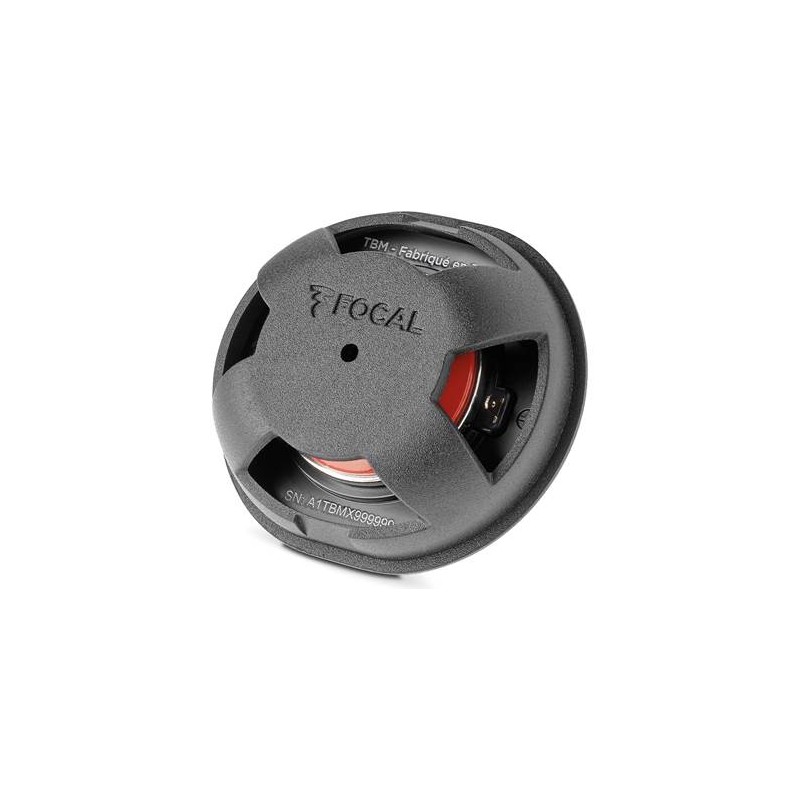

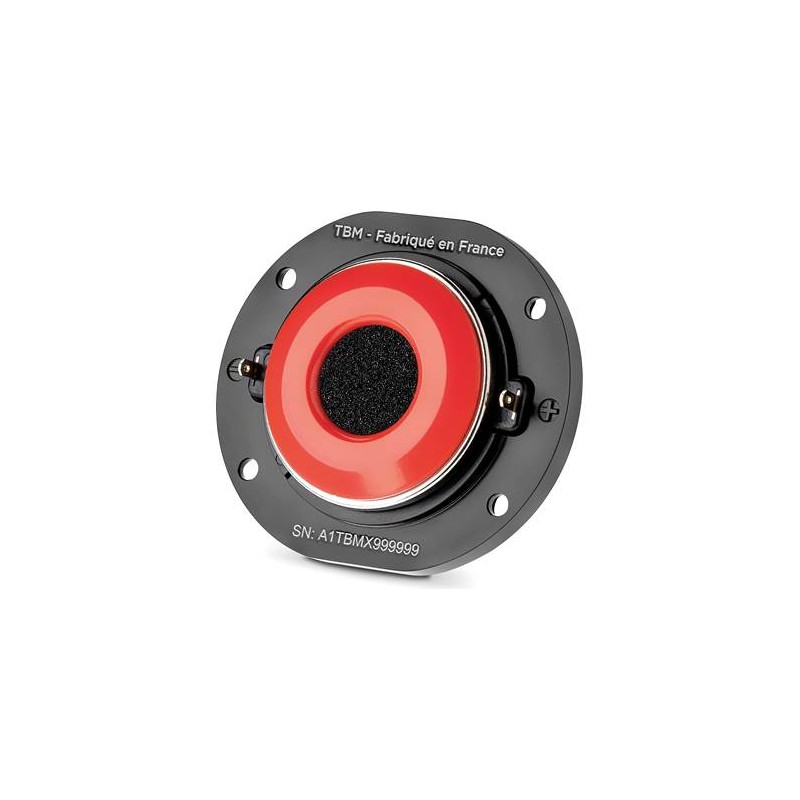

Magnet Cover: The included covers snap onto the tweeter magnets to create a "small volume" enclosure. The cover can be used with or without the flush mount housings. Without the magnet covers, the tweeters retain their IAL design (Infinite Acoustic Load).

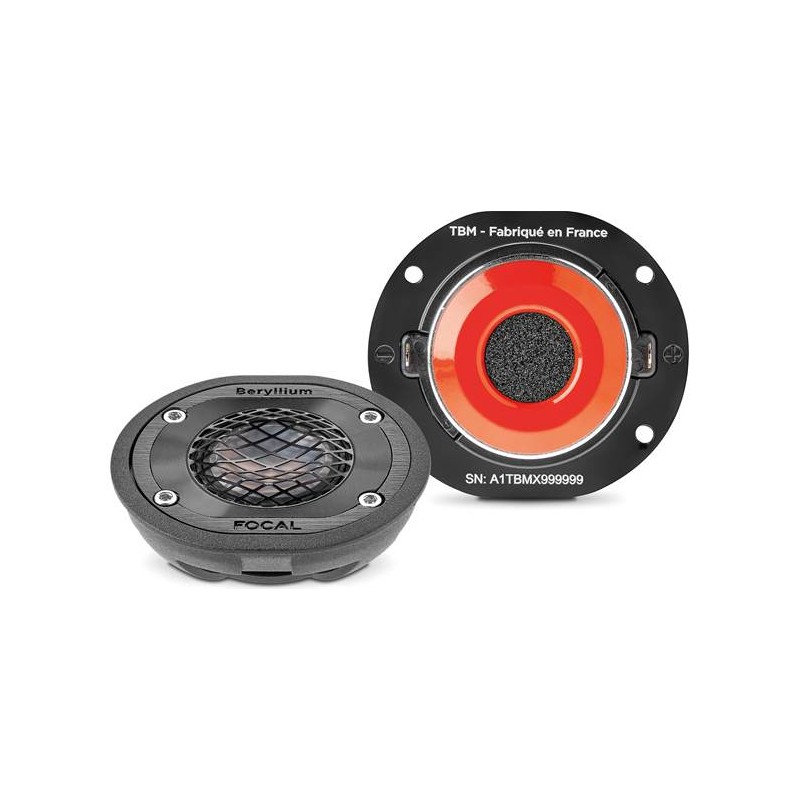

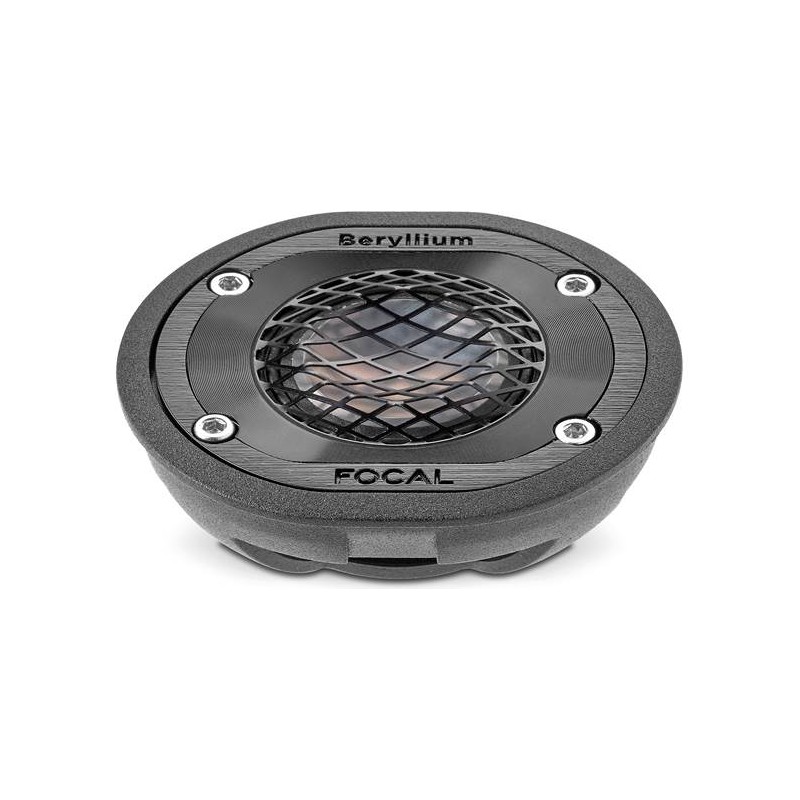

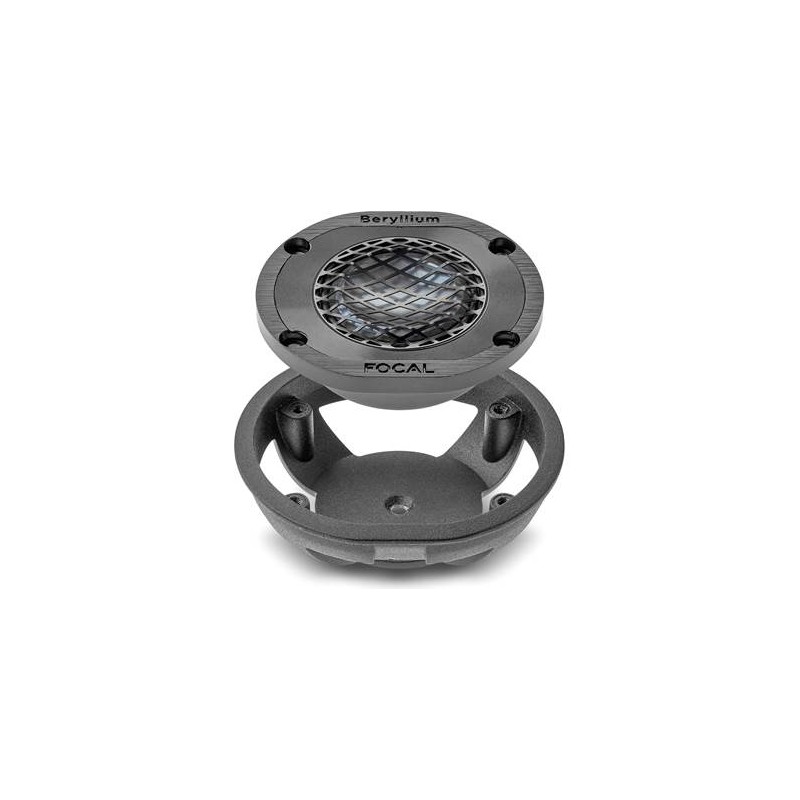

Mounting: The tweeters are already installed in the flush mount housings when shipped. Each housing is mounted using the single screw hole in the rear. In the same way the tweeters are mounted in the housings using four screws, they can be mounted without the housing using the same screw holes. (Useful if your space won't accommodate the size of the housing.) The tweeter depth is 0.585" when mounted without the flush mount housing and with the magnet cover. Once installed the tweeters do not swivel.

Tweeter Mounting Dimensions:

	w/o Flush Mount Housing	With Flush Mount Housing
Mounting Height	0.247"	0.152"
Mounting Depth	0.375"	0.808"
Frame Length	2.541"	2.942"
Frame Width	2.268"	2.663"
Cutout Length	2.01"	2.74"
Cutout Width	1.78"	2.47"
